Overview
A pipe fitting is certified as a pressure-containing component matched to its piping standard, which is what makes it different from certifying the pipe or the valve. The certificate has to show the fitting has the right dimensions and wall thickness for its nominal size and pressure class, is made from a material with proper traceability, and is marked so it can be identified on site. Because fittings are the joints where a system is most likely to leak or fail, and they are used across water, gas, oil and construction projects throughout the Kingdom, they are examined closely.
Pipe fittings fall under the SABER conformity scheme. A Product Certificate of Conformity (PCoC) is required for the fitting range, and a Shipment Certificate of Conformity (SCoC) is required for each consignment before it can clear Saudi customs. For fittings, the certificate relies heavily on the dimensional / pressure standard, the material test certificate and the product marking.
Product Types
The SABER route and fitting standards apply across a wide range of pipe fittings, including:

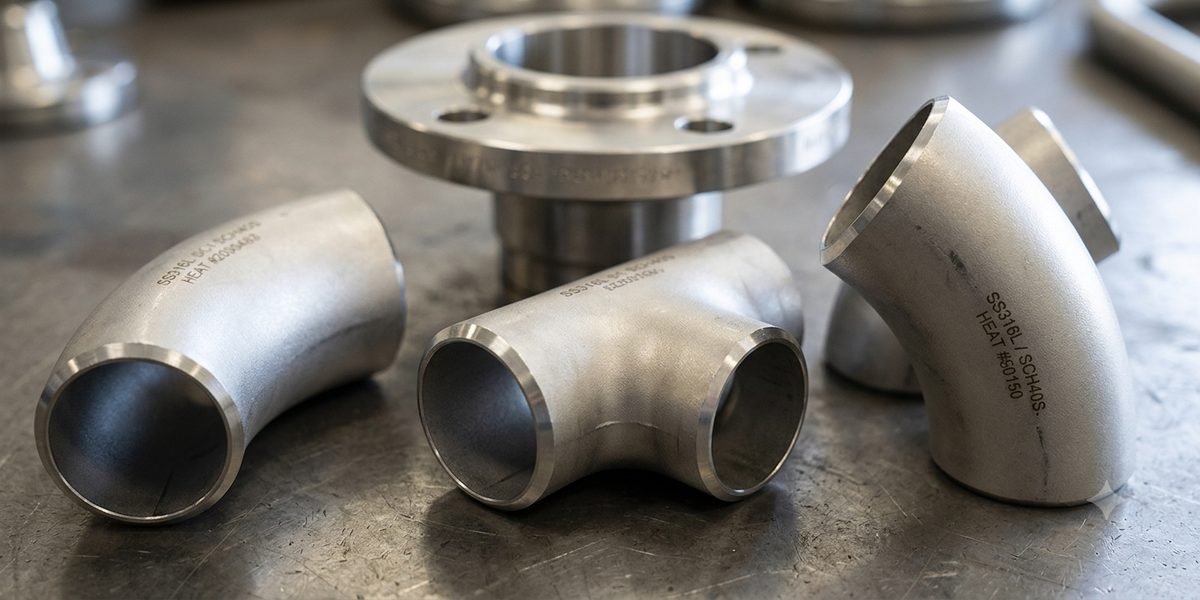

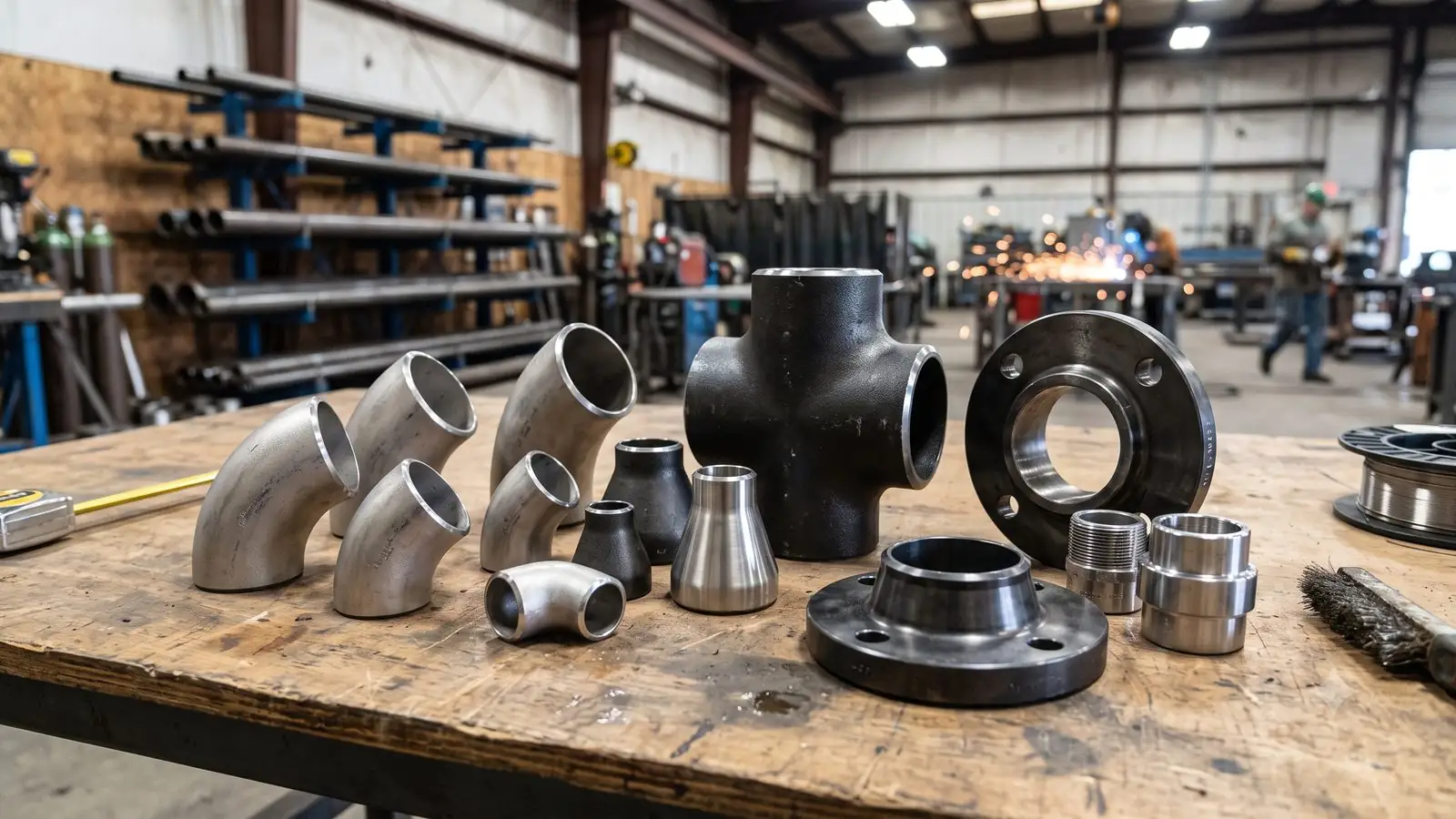

- Elbows, bends and return bends
- Tees, crosses and laterals
- Reducers, concentric and eccentric
- Couplings, unions and nipples
- Caps, plugs and end closures
- Flanged, threaded, socket-weld and butt-weld fittings
- Compression and push-fit fittings for water systems
- Fittings in carbon steel, stainless steel, copper, PVC / CPVC and PPR
The scope of your certificate is defined from the fitting type, material, nominal size, pressure class and connection type. We structure the certificate so the fittings you actually export are covered.
HS Codes
Pipe fittings are commonly classified under the headings below. These are examples only — the correct code depends on the material and type.
- 7307.xx — Tube or pipe fittings of iron or steel (elbows, tees, flanges, couplings)
- 7307.19 / 7307.99 — Cast and other fittings of iron / steel
- 7412.xx — Copper tube or pipe fittings
- 3917.40 — Fittings of plastics (PVC / CPVC / PPR)
- 7609.00 — Aluminium tube or pipe fittings
Applicable Saudi Requirements
Pipe fittings are certified through SABER registration on the Saudi platform. The main requirements are:
- A valid PCoC issued against the applicable Technical Regulation for the fitting type and material
- An SCoC for each individual shipment before customs clearance
- Conformity to the dimensional and pressure standard (ASME / EN / ISO) for the fitting
- A material test certificate (MTC) confirming the grade and chemistry
- Traceability from the fitting back to its heat / batch
- Correct marking of size, material, pressure class and standard
- Any required coating / plating for corrosion protection
- A registered Saudi importer on the SABER platform to link the shipment
Technical Regulation
Pipe fittings are assessed under the Saudi Technical Regulation covering the relevant material group — steel / metal products, or plastic products for PVC and PPR fittings. The regulation is built around dimensional conformity, pressure rating, material grade and traceability, and correct marking. The exact regulation and standard is confirmed at assessment from the fitting type, material and HS code. Our Technical Regulations guide explains how regulations are matched to products.
Testing / Standards
Pipe fittings are typically evaluated against the dimensional and material standards for their type. Typical evidence includes:
- ASME B16.9 / B16.11 — factory-made butt-weld and forged fittings
- ASME B16.5 — pipe flanges and flanged fittings
- EN 10253 / ISO 3419 — butt-welding fittings (EN / ISO route)
- EN 1254 — copper and copper-alloy fittings
- ISO 1452 / EN ISO 15874 — PVC and PPR fittings for pipework
- Material test certificate (EN 10204 3.1) and dimensional inspection
Existing test and material evidence may be accepted where it covers the correct fitting, material and rating. We review your certificates before arranging any new product testing, so you only test what is genuinely missing.
Documents Required
A typical pipe-fitting application uses the set below; our full documents required guide explains each item.
- Commercial invoice and packing list
- HS code of the fitting
- Technical datasheet showing type, size, pressure class and standard
- Material test certificate (EN 10204 3.1) for the grade
- Dimensional inspection report against the applicable standard
- Marking / stamping photograph showing size, grade and class
- Declaration of Conformity and manufacturer details
- Saudi importer registration details
PCoC Process
The Product Certificate of Conformity certifies the fitting range against the applicable standards. In outline:
-
Classification and scope
We confirm the fitting type, material, size range, pressure class, HS code and applicable standard, and define what the certificate should cover.
-
Material and test review
We check whether your material test certificates and dimensional reports can be reused and confirm the marking matches the declared grade and class.
-
Technical review
An approved certification body reviews the documents, marking and test evidence against the regulation.
-
PCoC issued
Once the review is satisfied, the PCoC is issued on the SABER platform. It is typically valid for one year.
SCoC Process
A Shipment Certificate of Conformity is issued per consignment and is what customs checks at the border. In outline:
-
Shipment details submitted
The invoice, packing list and the linked PCoC are submitted for the specific consignment.
-
Verification
The shipment is verified against the valid PCoC, the declared grade and class are confirmed, and the SCoC fee is settled on the platform.
-
SCoC issued
The SCoC is issued for that shipment, allowing it to clear Saudi customs. Each new shipment needs its own SCoC.
Certification Timeline
The main variable is whether material test certificates and dimensional evidence already exist for the fitting range. Our SABER timeline guide covers this in detail.
- With acceptable existing MTCs and dimensional reports — a PCoC can typically be arranged within a few working days
- When fresh testing or a fresh MTC is required — laboratory and inspection turnaround is the main driver, usually one to a few weeks
- SCoC — normally issued quickly per shipment once a valid PCoC is in place
Common Problems
- Fitting supplied with no material test certificate
- Stamped grade / class that cannot be traced to a heat number
- Dimensions or wall thickness not matching the declared standard
- Mixed materials in one consignment with a single generic MTC
- Marking missing size, pressure class or standard reference
- HS code declared on the invoice not matching the fitting type shipped
We check these points up front — especially the material traceability, the dimensional standard and the marking — so shipments are not held at customs or rejected for avoidable reasons.
Frequently Asked Questions
Are pipe fittings certified separately from the pipes and valves?
Yes. Fittings are pressure-containing components in their own right and are assessed against their own dimensional and material standards (such as ASME B16.9 for butt-weld fittings or B16.5 for flanged fittings). Certifying the pipe or the valve does not cover the elbows, tees, reducers and couplings — those need their own scope, even though they are often shipped together as a piping package.
Why is a material test certificate so important for fittings?
A material test certificate (typically EN 10204 3.1) proves the fitting is made from the grade claimed and links it back to a specific heat or batch of material. For pressure fittings this traceability is central — a fitting whose stamped grade cannot be traced to an MTC is one of the most common reasons a fitting certificate is queried. We check the MTC covers the exact grade and size you are exporting.
Do plastic (PVC / PPR) fittings follow the same route?
They follow the same SABER route but under the plastic-products regulation and their own standards (such as ISO 1452 for PVC or EN ISO 15874 for PPR), with pressure rating and dimensional conformity assessed for the pipework system. Metal fittings sit under the steel / metal regulation instead. We confirm the correct regulation for your material during assessment.
How much does SABER certification for pipe fittings cost and how long does it take?
It depends mainly on whether valid material test certificates and dimensional evidence are already in place. With acceptable documentation a PCoC can often be arranged within a few working days; if fresh testing or a fresh MTC is required the laboratory and inspection turnaround is the main variable. Send your fitting details and certificates for a specific quote and timeline at no cost. See our SABER certificate cost guide.
How long is the PCoC valid, and do I need a new SCoC for every shipment?
A Product Certificate of Conformity is typically valid for one year, so one PCoC can cover multiple shipments of the same fittings during that period. A Shipment Certificate of Conformity is issued per consignment — every individual shipment needs its own SCoC before it can clear Saudi customs.
Which products and HS codes does this cover?
The same SABER route applies across elbows, tees, reducers, couplings and flanged fittings — steel fittings are generally classified under HS heading 7307, copper fittings under 7412 and plastic fittings under 3917.40. We confirm the correct classification and applicable requirements for your exact fitting during assessment.
Get Your Pipe Fittings Certified
Send us your fitting type, material grade, size range, pressure class, connection type, HS code and any existing material test certificates and dimensional reports. We will confirm the applicable Technical Regulation and standard, review your testing, and coordinate the PCoC and each SCoC so your shipments clear Saudi customs without delay.
