Overview
Electric motors sit in an unusual position for Saudi conformity because they are driven by both electrical safety and energy efficiency at the same time. The certificate has to show the motor is electrically safe — insulation, earthing, temperature rise and protection — and, for the power ratings Saudi Arabia regulates, that it reaches the required minimum efficiency (IE) class. Because motors consume a very large share of industrial electricity in the Kingdom, the efficiency side is examined as closely as the safety side.
Electric motors fall under the SABER conformity scheme. A Product Certificate of Conformity (PCoC) is required for the motor range, and a Shipment Certificate of Conformity (SCoC) is required for each consignment before it can clear Saudi customs. For motors, the certificate relies heavily on IEC 60034 test reports, the declared efficiency (IE) class and the rating-plate data.
Product Types
The SABER route and motor requirements apply across industrial and general-purpose motors, including:
- Three-phase AC induction motors (squirrel-cage)
- Single-phase AC motors (capacitor-start / run)
- IE1 / IE2 / IE3 / IE4 premium-efficiency motors
- Foot-mounted, flange-mounted and integral-gear motors
- Explosion-proof / Ex motors for hazardous areas
- Brake motors and inverter-duty (VFD) motors
- DC motors and servo / permanent-magnet motors
- Submersible and pump-duty motors
The scope of your certificate is defined from the motor type, rated power (kW), voltage, number of poles, frame size and efficiency class. We structure the certificate so the motors you actually export are covered.
HS Codes
Electric motors are commonly classified under the headings below. These are examples only — the correct code depends on the motor type and rated output.
- 8501.51 — AC motors, multi-phase, output ≤ 750 W
- 8501.52 — AC motors, multi-phase, 750 W – 75 kW
- 8501.53 — AC motors, multi-phase, output > 75 kW
- 8501.40 — AC motors, single-phase
- 8501.31 / 8501.32 — DC motors by output range
Applicable Saudi Requirements
Electric motors are certified through SABER registration on the Saudi platform. The main requirements are:
- A valid PCoC issued against the applicable Technical Regulation for low-voltage electrical equipment and the motor energy-efficiency rules
- An SCoC for each individual shipment before customs clearance
- Electrical safety evidence to IEC 60034-1 (rating and performance) and related safety standards
- Minimum efficiency (IE) class per IEC 60034-30-1 for the regulated power/pole range

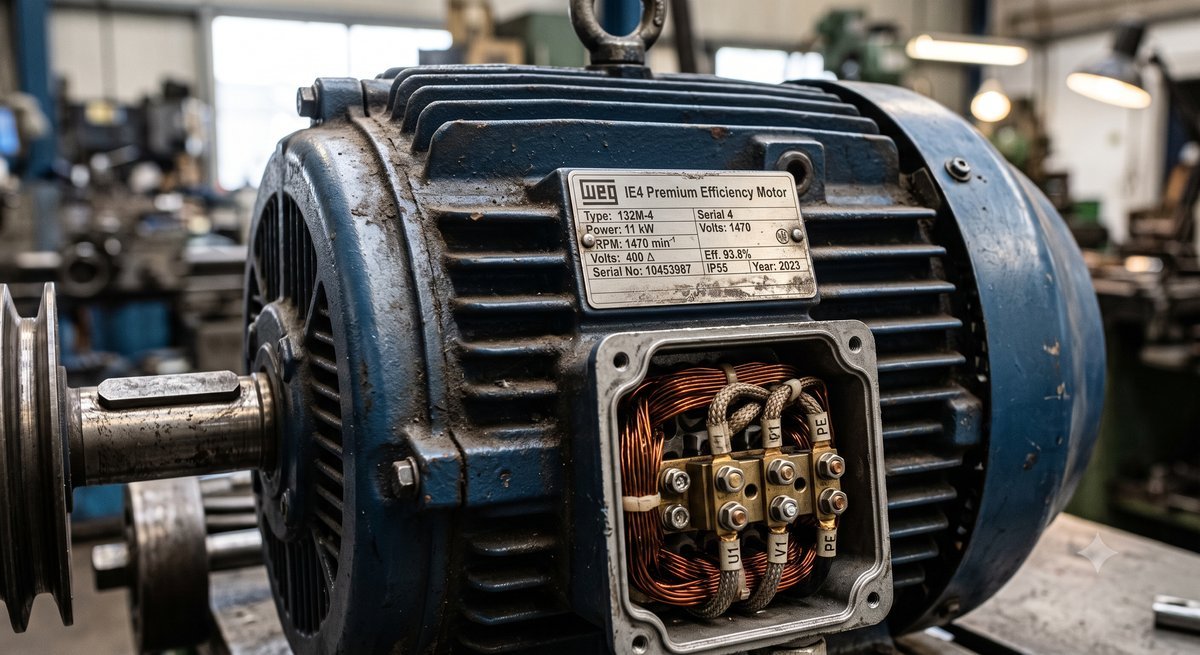

- A rating plate showing power, voltage, frequency, current, speed, IP rating, insulation class and IE class
- Temperature-rise, insulation and earthing / protection verification
- EMC evidence where the motor is supplied with electronic control / drive
- A registered Saudi importer on the SABER platform to link the shipment
Technical Regulation
Electric motors are assessed under the Saudi Technical Regulation for low-voltage electrical equipment together with the energy-efficiency requirements for motors. The regulation is built around electrical safety, temperature rise, rating-plate marking and — for the covered ratings — the minimum IE efficiency class. The exact regulation and standard set is confirmed at assessment from the motor type, rated power and HS code. Our Technical Regulations guide explains how regulations are matched to products.
Testing / Standards
Electric motors are typically evaluated against the applicable IEC standards for rotating machines. Typical verification includes:
- IEC 60034-1 — rating and performance of rotating electrical machines
- IEC 60034-2-1 — methods for determining losses and efficiency
- IEC 60034-30-1 — efficiency (IE) classes for line-operated AC motors
- IEC 60034-5 — degrees of protection (IP code) of the enclosure
- Temperature-rise, insulation resistance and dielectric (hi-pot) tests
- EMC (IEC 61000 series) where electronic control is included
Existing accredited IEC 60034 test reports may be accepted where they cover the correct type, rating and efficiency class. We review your reports before arranging any new product testing, so you only test what is genuinely missing.
Documents Required
A typical motor application uses the set below; our full documents required guide explains each item.
- Commercial invoice and packing list
- HS code of the motor
- Technical datasheet showing power, voltage, poles, frame size, IP and insulation class
- IEC 60034 test reports (performance and efficiency / IE class)
- Rating-plate photograph showing power, voltage, IP, insulation and IE class
- EMC test report where the motor includes electronic control
- Declaration of Conformity and manufacturer details
- Saudi importer registration details
PCoC Process
The Product Certificate of Conformity certifies the motor range against the applicable standards and efficiency class. In outline:
-
Classification and scope
We confirm the motor type, rated power, poles, voltage, frame size, HS code, IE class and applicable standards, and define what the certificate should cover.
-
Report and efficiency review
We check whether your IEC 60034 performance and efficiency reports can be reused and confirm the rating plate matches the declared IE class and ratings.
-
Technical review
An approved certification body reviews the documents, rating plate and test evidence against the regulation.
-
PCoC issued
Once the review is satisfied, the PCoC is issued on the SABER platform. It is typically valid for one year.
SCoC Process
A Shipment Certificate of Conformity is issued per consignment and is what customs checks at the border. In outline:
-
Shipment details submitted
The invoice, packing list and the linked PCoC are submitted for the specific consignment.
-
Verification
The shipment is verified against the valid PCoC, the declared ratings and IE class are confirmed, and the SCoC fee is settled on the platform.
-
SCoC issued
The SCoC is issued for that shipment, allowing it to clear Saudi customs. Each new shipment needs its own SCoC.
Certification Timeline
The main variable is whether valid IEC 60034 performance and efficiency reports already exist and whether the declared IE class is supported. Our SABER timeline guide covers this in detail.
- With acceptable existing performance and efficiency reports — a PCoC can typically be arranged within a few working days
- When fresh testing is required — efficiency (IE-class) and performance testing turnaround is the main driver, usually a few weeks depending on scope
- SCoC — normally issued quickly per shipment once a valid PCoC is in place
Common Problems
- Rating-plate IE class not matching the efficiency test report
- No IEC 60034-2-1 efficiency test for a regulated power/pole rating
- Rating plate missing IP rating, insulation class or IE class
- Motor declared at an efficiency class below the required minimum for its rating
- Missing EMC evidence where the motor is sold with an electronic drive
- HS code declared on the invoice not matching the motor output actually shipped
We check these points up front — especially the efficiency class, the rating plate and the test reports — so shipments are not held at customs or rejected for avoidable reasons.
Frequently Asked Questions
Do electric motors need a minimum efficiency (IE) class for Saudi Arabia?
Yes — for the power and pole ranges Saudi Arabia regulates, motors must meet a minimum efficiency (IE) class defined against IEC 60034-30-1, and the class must be shown on the rating plate and supported by an efficiency test to IEC 60034-2-1. The exact minimum depends on the motor rating, so we confirm the required IE class for your specific motors at assessment.
What does IEC 60034 testing cover for motors?
IEC 60034 is the family of standards for rotating electrical machines. IEC 60034-1 covers rating and performance (including temperature rise and dielectric strength), IEC 60034-2-1 covers how losses and efficiency are measured, and IEC 60034-30-1 defines the IE efficiency classes. Together these reports show the motor is both safe and efficient, which is exactly what the certificate needs.
Why does the rating plate matter so much?
The rating plate is the quickest cross-check a reviewer makes: it should show power, voltage, frequency, current, speed, IP rating, insulation class and IE class, and every one of those must match the test reports. A motor whose plate claims a higher IE class than the report supports, or that omits the IP or insulation class, is one of the most common reasons a motor certificate is queried.
How much does SABER certification for electric motors cost and how long does it take?
It depends mainly on whether valid IEC 60034 performance and efficiency reports are already in place. With acceptable evidence a PCoC can often be arranged within a few working days; if fresh efficiency testing is required the laboratory turnaround is the main variable. Send your motor details and reports for a specific quote and timeline at no cost. See our SABER certificate cost guide.
How long is the PCoC valid, and do I need a new SCoC for every shipment?
A Product Certificate of Conformity is typically valid for one year, so one PCoC can cover multiple shipments of the same motors during that period. A Shipment Certificate of Conformity is issued per consignment — every individual shipment needs its own SCoC before it can clear Saudi customs.
Which products and HS codes does this cover?
The same SABER route applies across three-phase, single-phase, DC and premium IE-class motors — generally classified under HS heading 8501. We confirm the correct classification and applicable requirements for your exact motor during assessment.
Get Your Electric Motors Certified
Send us your motor type, rated power, voltage, poles, frame size, IP and insulation class, declared IE class, HS code and any existing IEC 60034 performance and efficiency reports. We will confirm the applicable Technical Regulation, testing and efficiency-class requirements, review your testing, and coordinate the PCoC and each SCoC so your shipments clear Saudi customs without delay.
